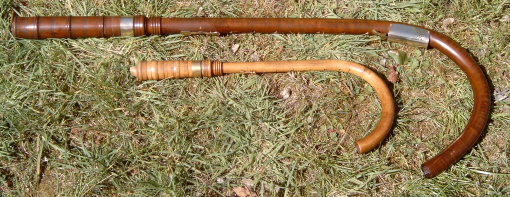

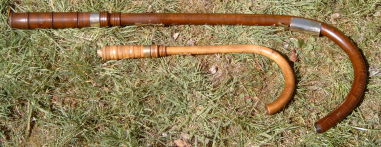

bass crumhorn in f, alto crumhorn in f and soprano crumhorn in c, modern versions
bass crumhorn in f, alto crumhorn in f and
soprano crumhorn in c, modern versions
300 dpi JPEG
  Crumhorn Der Sackpfeyffer zu Linden
 Hier geht's zur deutschsprachigen Version
Go here to the German version

Preamble: The crumhorn has nothing to do with the brass-wind instrument
horn (except that's a wind instrument too).

The crumhorn is a double-reed wood-wind instrument with a cylindrical bored curved tube that's finished with a conical bore. The double-reed resides in a windcap. The crumhorn has eight small fingerholes including a hole for the left thumb. The lowest tone is handled with a key on large instruments. The small fingerholes enable cross fingerings. The crumshorns have a scale range of a major ninth and can be chromatically played except minor second above their lowest tone. It wasn't considered to overblow them. Lowest tones can be underblown on the bass crumhorn and the great bass crumhorn. Underblown tones sound a fifth lower than fingered by lowering blow pressure a little bit. This extends scale range of these instruments by a fifth down, but control of underblown tones is very difficult. Modern instruments have one or two keys to extend scale range to higher tones. The first key is handled by left forefinger and extends scale range by one tone to a major tenth. The second key is handled by left thumb an extends scale range by an additional semitone to an eleventh. The second key enables the first overblowing of lowest tones into the twelfth too. The crumhorn has a large range to slide tones in relation to the European wood-wind instruments. This allows to exactly tune the tones especially in a crumhorn ensemble but exact tuning of the tones is the greatest difficulty by playing the crumhorn. The modern crumhorns allow to slide their highest tone handled by both keys up to one semitone. If the second key is used and specially blow pressure is modulated some squeaking tones can be played. Moreover the three lowest tones can be influenced in this way that the key-note and their twelfth sounds together. The tones described here don't typically sound for the crumhorn. So they can only be used for modern music. These special tones can be produced well with a hard reed which is suited for the solo crumhorn too. Softer reeds are mostly played in a crumhorn ensemble because they enable an easier tuning of the tones.

double-reeds for bass crumhorn and alto crumhorn
double-reeds for the bass crumhorn (top)
and the alto crumhorn (bottom)
300 dpi JPEG

The name "crumhorn" leads away from a medieval instrument. This instrument has a cylindrical bored straight tube that's finished with an animal horn (from cattle or goat) as bell. This kind exists still today as the chanter for some bagpipes, e.g. the "gaide" and the "bock". Another version of the crumhorn has a cylindrical bored straight tube. A short tube is rectangularly mounted at this lower end. Another short tube is mounted at that free end rectangular to the first short tube and parallel to the long tube. This short tube is finished with a large bell. This construction avoids technical difficult curve of tube.

alto chanter of a "Großer Bock" und alto crumhorn
alto chanter in f of a bagpipe called "Großer Bock"
(top) and alto crumhorn in f (bottom)
300 dpi JPEG

The crumhorn shown above (without keys) is a typical instrument of the Renaissance and it was developed in the 15th century. It was build in imitation of the vocal quartet with soprano, alto, tenor and bass as a whole family like the most instruments of the Renaissance. Sporadically some higher and lower sounding instruments were build. Only sizes from sporano to great bass have come to stay. They have following scale ranges without overblown and underblown tones (tones with key fingerings in brackets):

Soprano in c:  c¹ d¹ – d²(– f²)
Alto in g:  g⁰ a⁰ – a¹(– c²)
Alto in f:  f⁰ g⁰ – g¹(– b¹)
Tenor in c:  c⁰ d⁰ – d¹(– f¹)
Bass in f:  F G – g⁰(– b⁰)
Great bass in c:     C D – d⁰(– f⁰)

Limited scale range of a major ninth is the reason for existence of the two alto crumhorns whose differ by one tone. The alto crumhorn in f or in g is chosen depending on scale range of part to play. The modern alto crumhorn makes necessity to switch between two instruments obsolete, because scale range of the modern alto crumhorn in f with one key includes scale range of the keyless alto crumhorn in g. If a part can be played either on the alto crumhorn in f or the alto crumhorn in g tonal and playing characteristics may lead to an instrument change, because this changes relation between open fingerings, cross fingerings and possibly necessary key fingerings.

The crumhorns sound as written like most of the Renaissance woodwind instruments (cornamusa, dulcian, rauschpfeiff, shawm, bombard, chalumeaux). They're like an 8′-rank of a keyboard instrument in this point.

Download here a sound example (improvisation, own work): Altkrummhorn.ogg

The bass crumhorn and the great bass crumhorn are rather unwieldy. This may cause signs of fatigue while playing them. The windcap of the bass crumhorn is designed unfavorable too. This may cause lipping problems especially if a hard reed is used. A thumb holder and a neck strap those are common e.g on the saxophones can reduce or avoid these problems. Thumb holder and strap holder shown below consist of a thumb holder and a strap ring for a saxophone (obtainable at instrument dealer/maker), in each case a rubber pad (obtainable in small amounts at modeler's shop) and some cable ties (obtainable at DIY centre or electrical specialist shop). Each rubber pad is cutted in one piece. Rubber pads protect the instrument against damages caused by metal and plastic parts of both holders and prevent holders from sliding. The plastic thumb holder for a saxophone is adapt to the round crumhorn tube by fixing some additional cable ties on it because the thumb holder for a saxophone is designed for mounting on a flat plate. Using black parts mainly make them quite inconspicuous. Mounting such strap holders and thumb holders is non destructive and therefore reversible.

neck strap eyelet and thumb rest on a bass crumhorn
neck strap eyelet and thumb rest
on a bass crumhorn
300 dpi JPEG
